Bar chart

Use bars when precise comparison matters more than trend continuity.

When to use

Choose bar for discrete categories, rankings, grouped comparisons, or compositions with a shared baseline.

Minimal example

Add this element to a native Blade view after installing the package. The example includes its data; replace the values with your own.

<native:bar-chart
    class="w-full h-80"
    :series="[
        [
            'id' => 'revenue',
            'name' => 'Revenue',
            'color' => '#ED3F16',
            'points' => [
                ['id' => 'jan', 'label' => 'January', 'value' => 18],
                ['id' => 'feb', 'label' => 'February', 'value' => 26],
                ['id' => 'mar', 'label' => 'March', 'value' => 31],
            ],
        ],
    ]"
    mode="grouped"
    orientation="vertical"
    :style="['bar' => ['radius' => 6, 'width' => 18]]"
    a11y-label="Revenue by month"
/>

Native preview

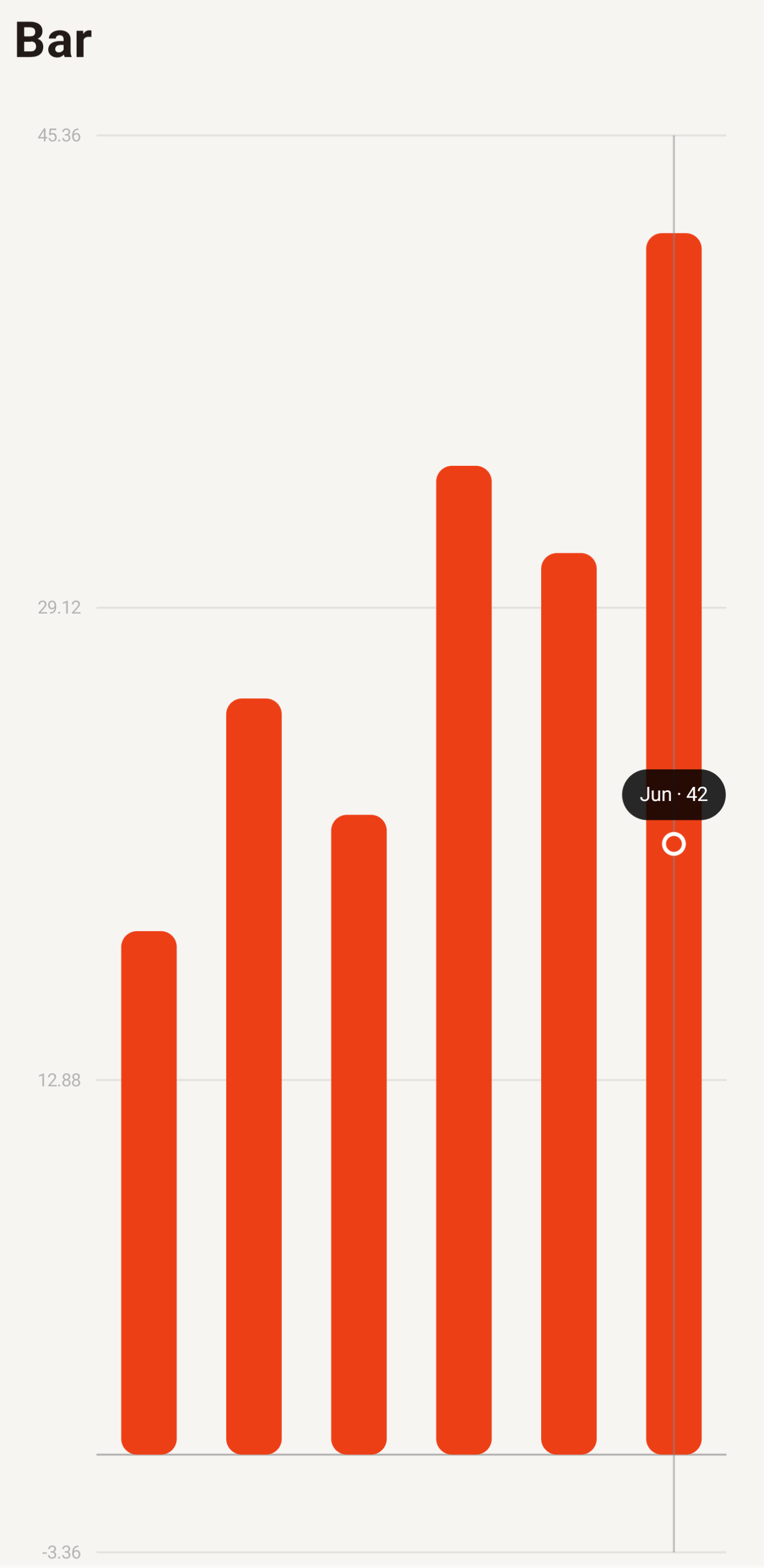

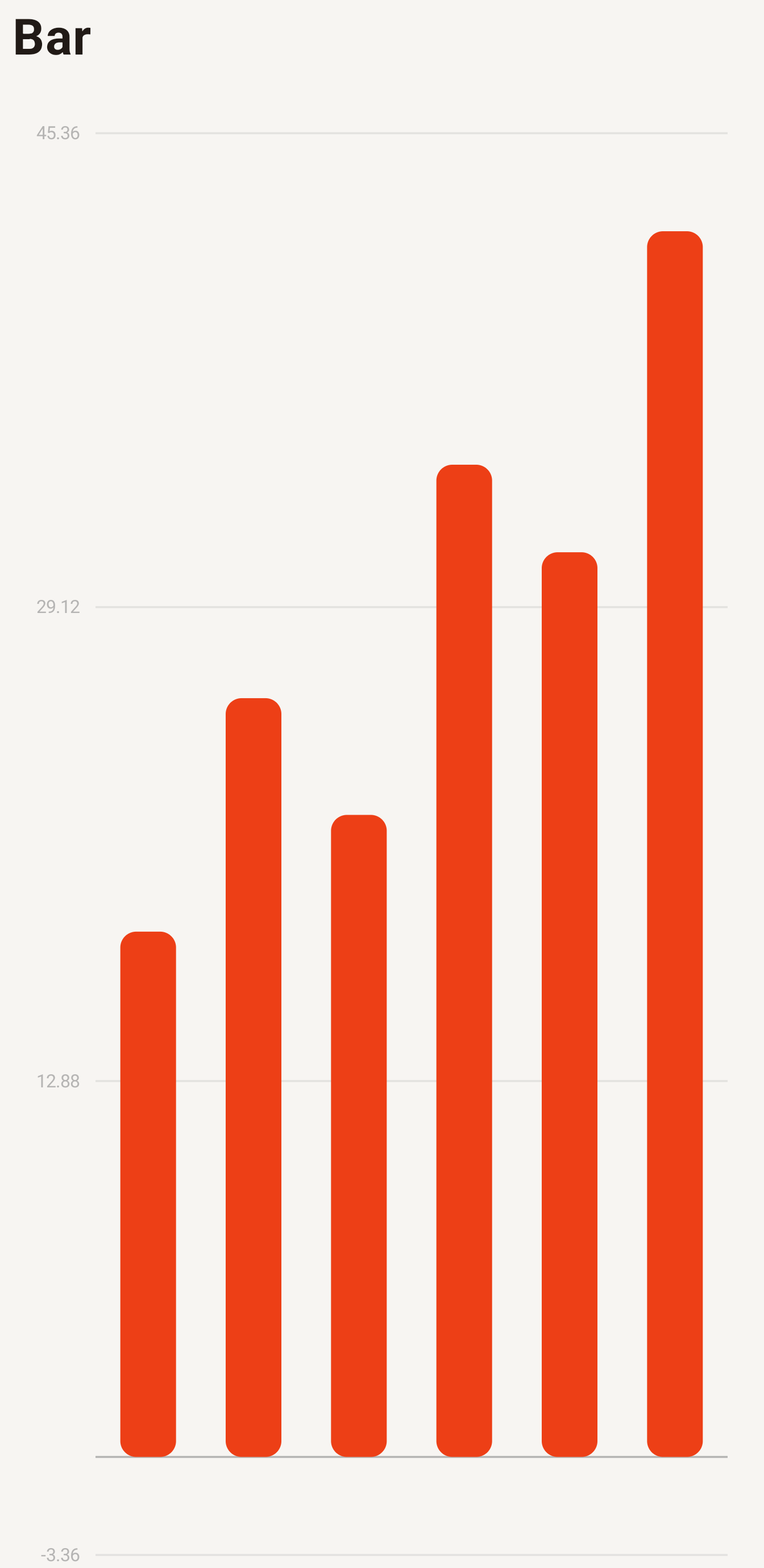

Android

Android · Bar selection

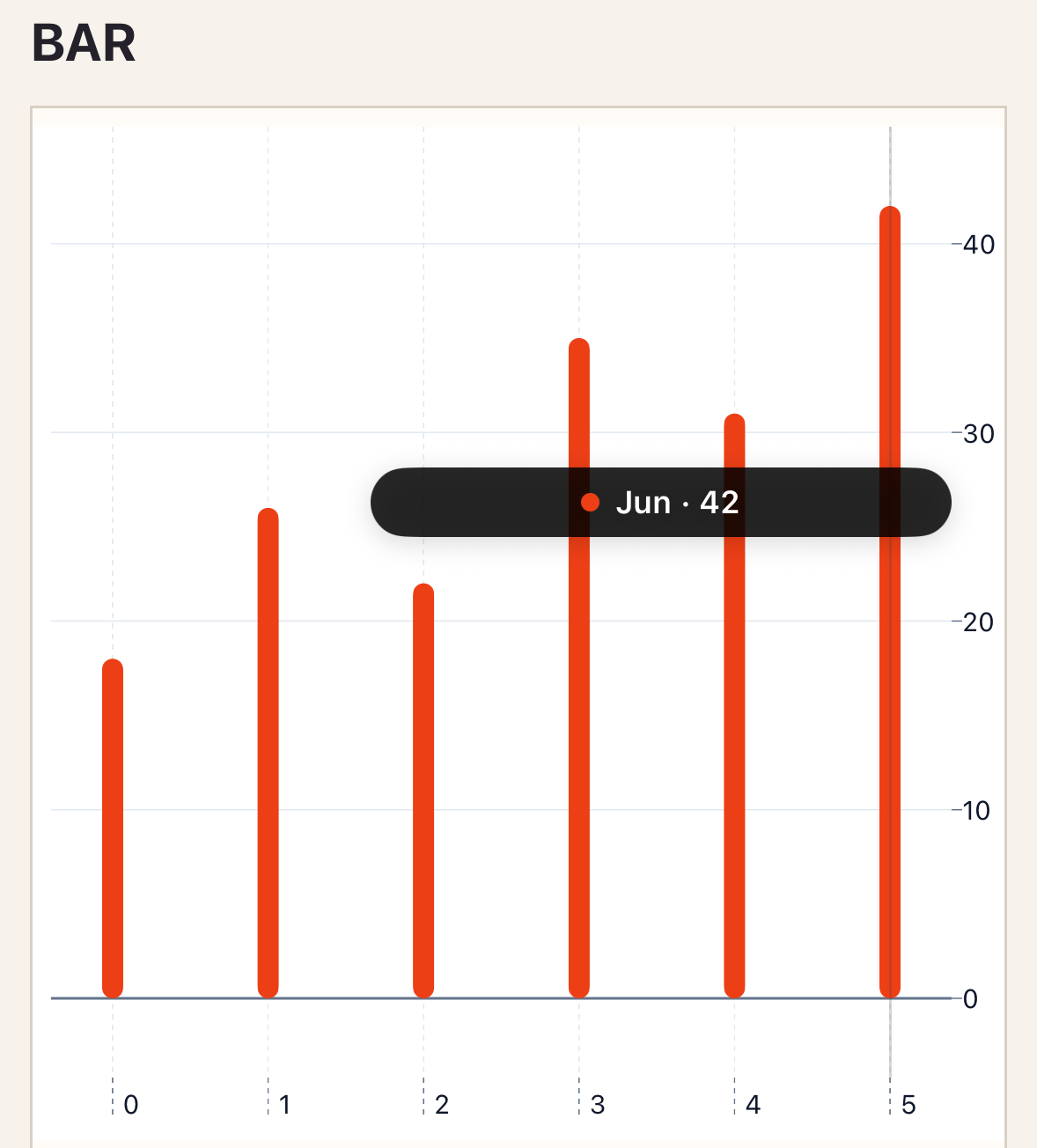

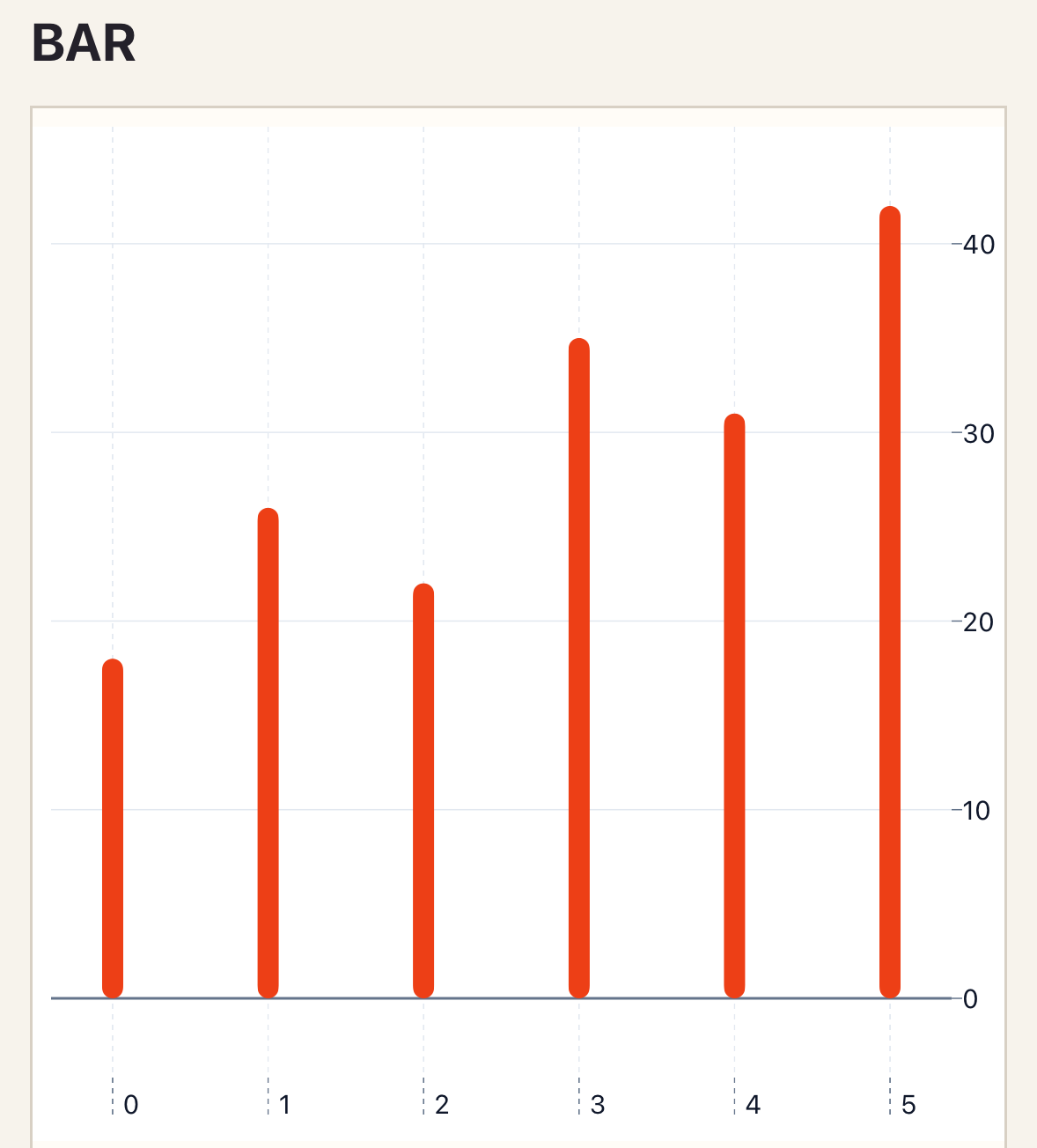

iOS

iOS · Bar selection

Variants

• mode="grouped" compares peers; mode="stacked" compares totals and composition.
• orientation="horizontal" helps long category labels.

Customization

Set bar radius and width through style.bar. Series colors and styles override the chart defaults; individual points do not accept style overrides.

See the style options reference for supported keys and ranges.

Interaction

To handle selection, add _select="selectPoint" and define the method shown in Callbacks and interactions.

Selection emits one completed callback with stable series and point IDs. Horizontal charts keep the same selection contract.

Empty and error states

Empty data renders empty-label; malformed or duplicate IDs are rejected. Native contract failures render error-label.

Accessibility

Use complete category labels and an a11y-label that names the measure and grouping.

API

Bar adds mode="grouped|stacked", orientation="vertical|horizontal", and the bar style section to the Cartesian API.

Troubleshooting

If labels collide, prefer horizontal orientation or fewer categories. Avoid stacked bars when users need exact internal comparisons.
