Radar chart

Radar requires at least three axes. Every series must supply one value for every axis in declared order.

When to use

Choose radar for profile comparison across a stable set of dimensions, not for precise ranking.

Minimal example

Add this element to a native Blade view after installing the package. The example includes its data; replace the values with your own.

<native:radar-chart
    class="w-full h-80"
    :axes="[
        ['id' => 'speed', 'label' => 'Speed', 'maximum' => 100],
        ['id' => 'quality', 'label' => 'Quality', 'maximum' => 10],
        ['id' => 'cost', 'label' => 'Cost', 'maximum' => 500],
    ]"
    :series="[
        [
            'id' => 'nativephp',
            'name' => 'NativePHP',
            'color' => '#ED3F16',
            'values' => [
                ['axis' => 'speed', 'value' => 88],
                ['axis' => 'quality', 'value' => 9],
                ['axis' => 'cost', 'value' => 220],
            ],
        ],
    ]"
    :grid-levels="4"
    :fill-opacity="0.3"
    a11y-label="Platform capability profile"
/>

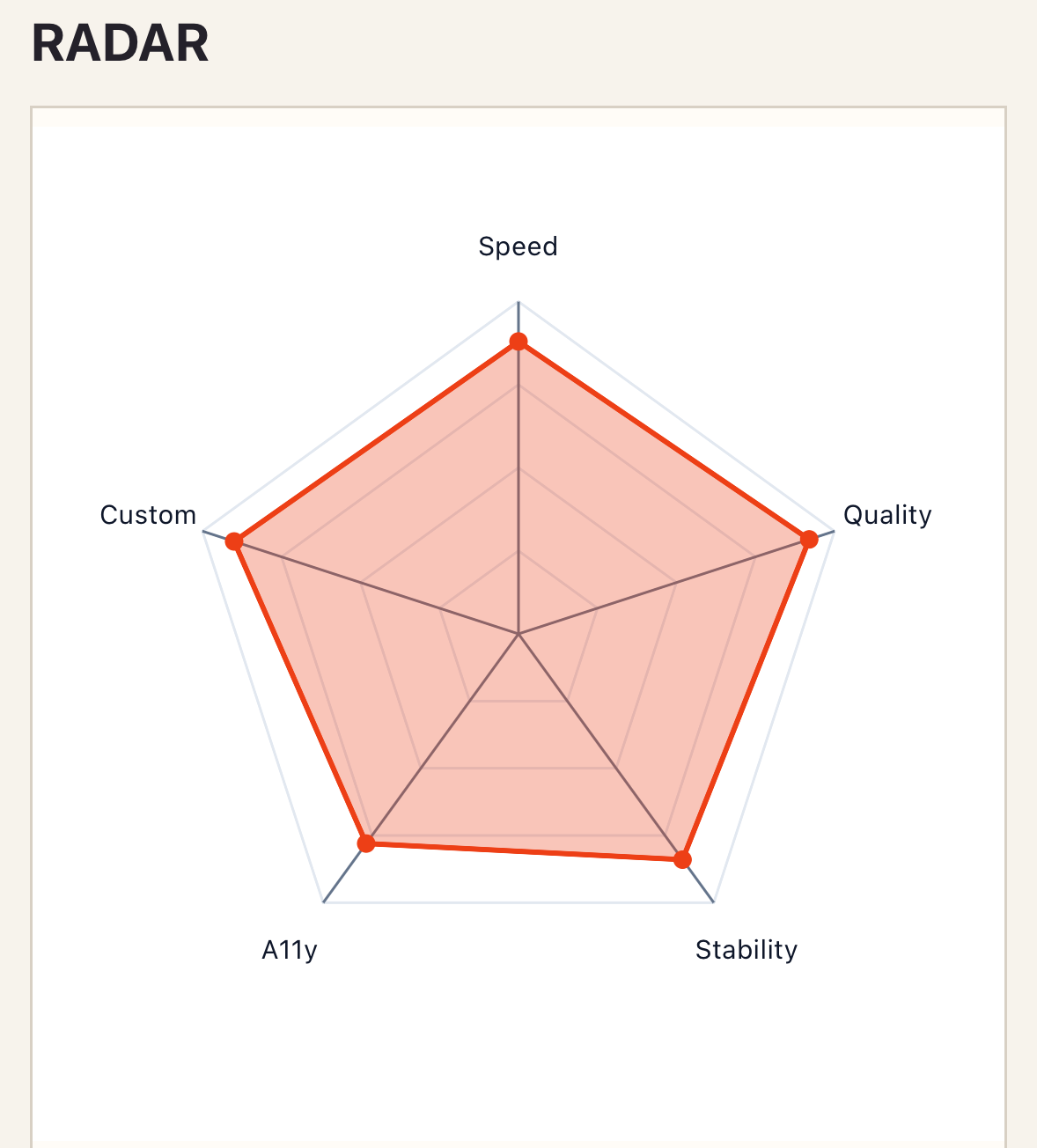

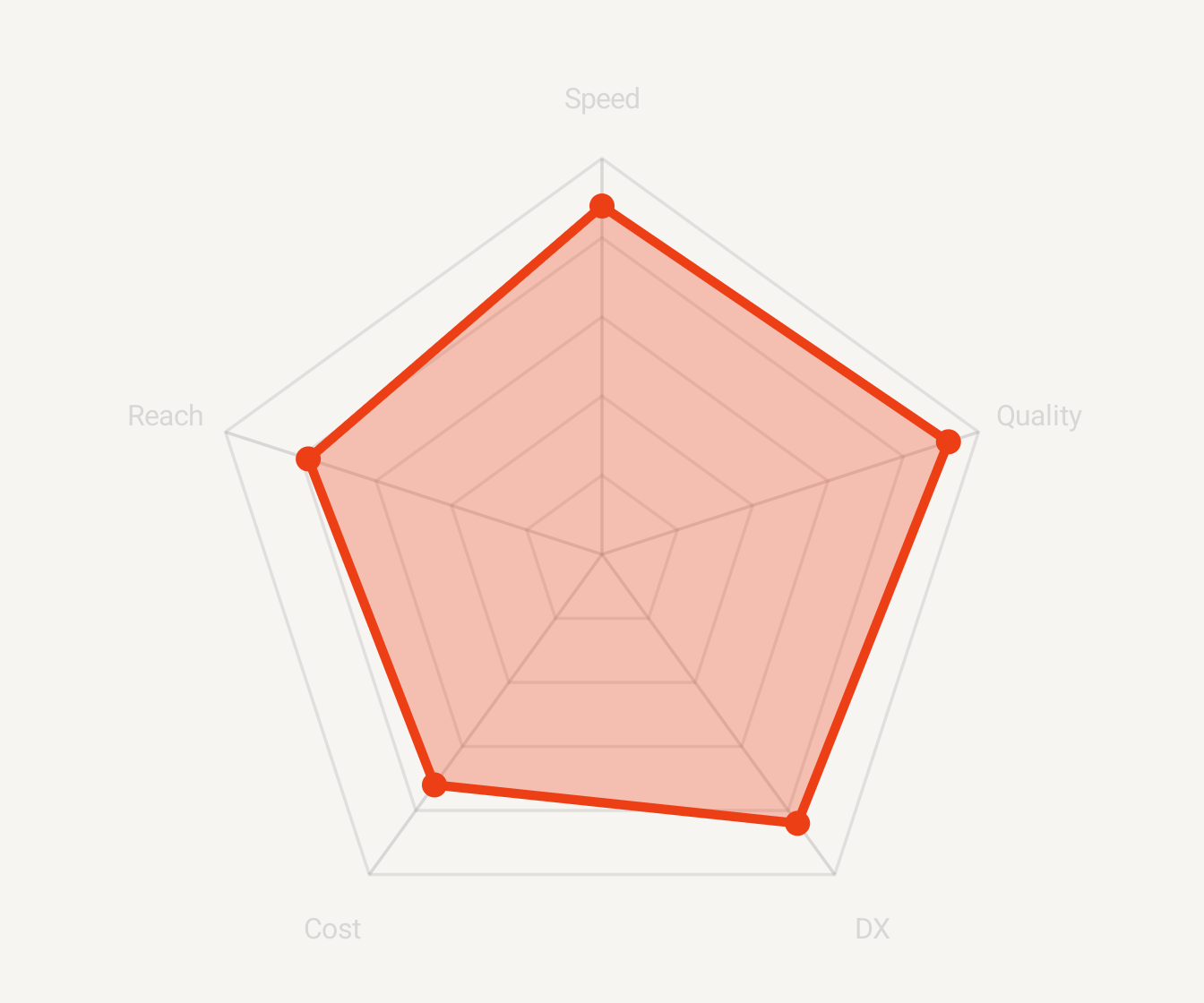

Native preview

Android

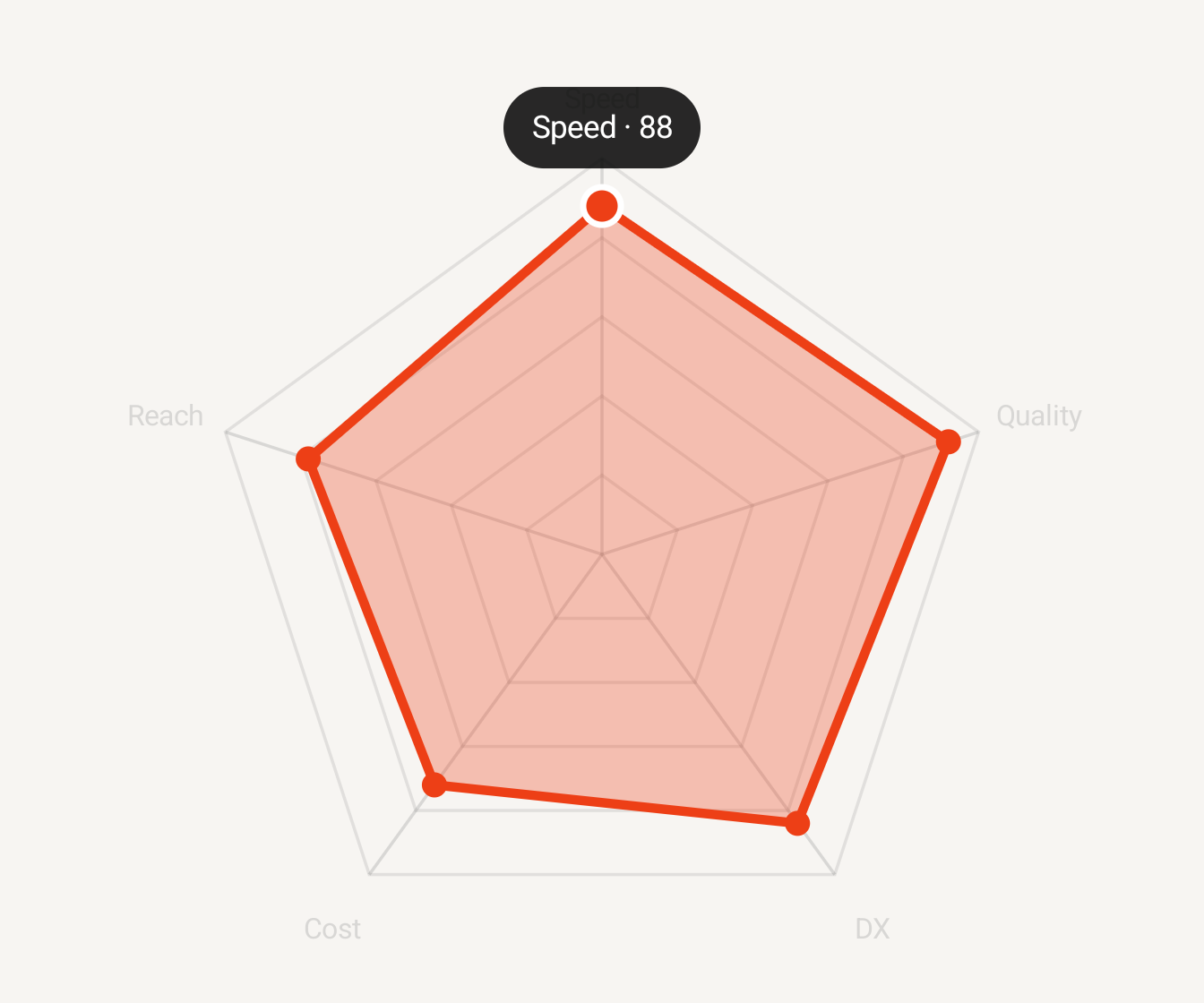

Android · Axis selection

iOS

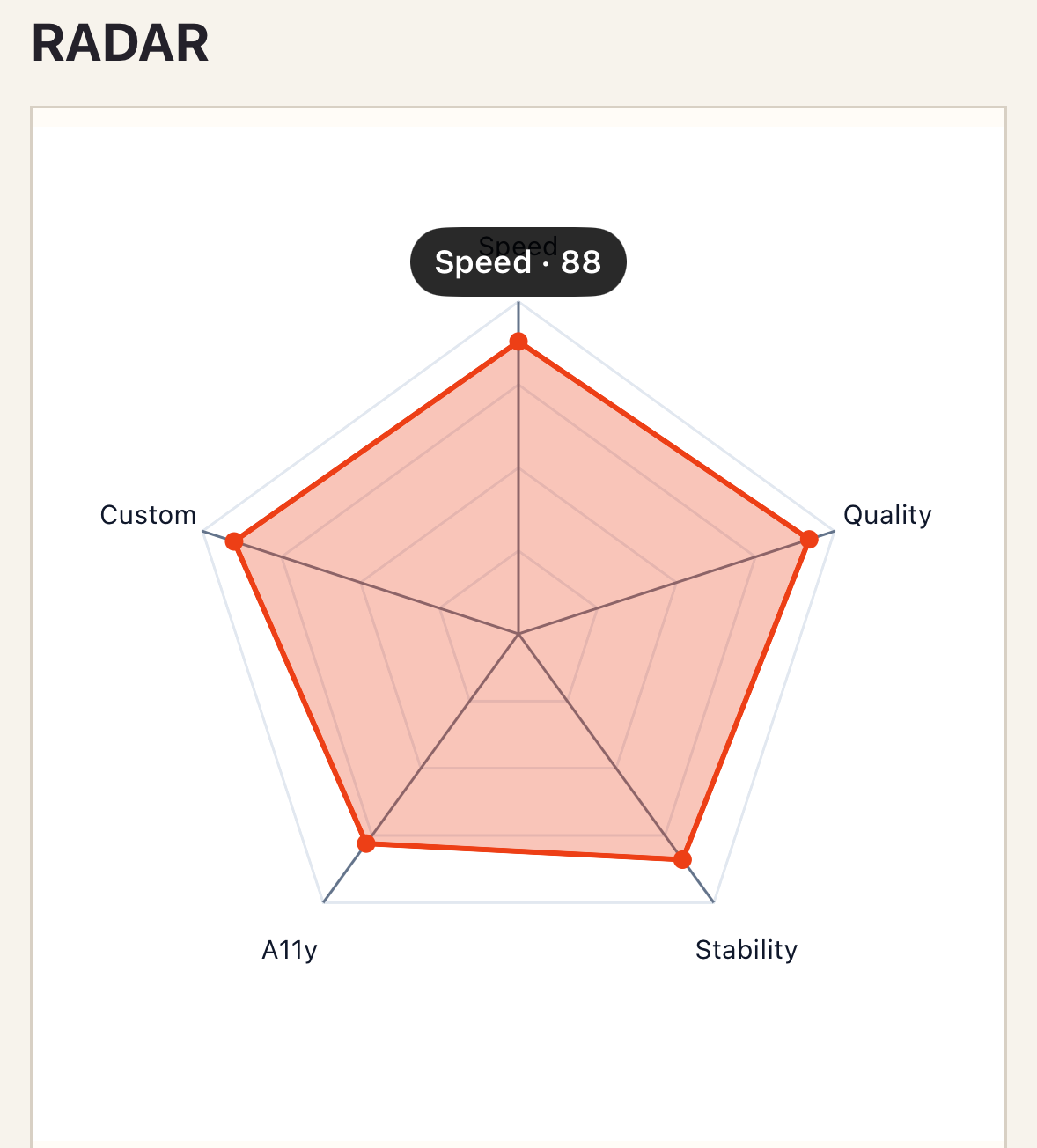

iOS · Axis selection

Variants

Compare a small number of series against the same ordered axes. Keep axis order fixed between renders.

Customization

Theme and preset colors apply before series overrides; configure grid levels, fill opacity, lines, points, and grid styles semantically.

See the style options reference for supported keys and ranges.

Interaction

To handle selection, add _select="selectPoint" and define the method shown in Callbacks and interactions.

_select identifies the series and selected axis value with stable series and axis IDs.

Empty and error states

An empty series list with at least three valid axes renders the empty state. Fewer than three axes and incomplete, out-of-order, or out-of-range values are rejected atomically.

Accessibility

Keep labels short, units explicit, and ordering consistent. Pair exact comparisons with a table.

API

Radar requires axes and series; specialized props are grid-levels and fill-opacity.

Troubleshooting

If validation says values are out of order, match each series value list exactly to the declared axis order.
