Progress chart

Use progress for a small ordered set of values between 0 and 1. It is not a replacement for an indeterminate loading indicator.

When to use

Choose progress for several bounded goals that share a clear completion scale.

Minimal example

Add this element to a native Blade view after installing the package. The example includes its data; replace the values with your own.

<native:progress-chart
    class="w-full h-80"
    :metrics="[
        ['id' => 'build', 'label' => 'Build', 'value' => 0.92, 'color' => '#ED3F16'],
        ['id' => 'tests', 'label' => 'Tests', 'value' => 0.78, 'color' => '#2563EB'],
    ]"
    center-label="Release readiness"
    a11y-label="Release readiness by gate"
/>

Native preview

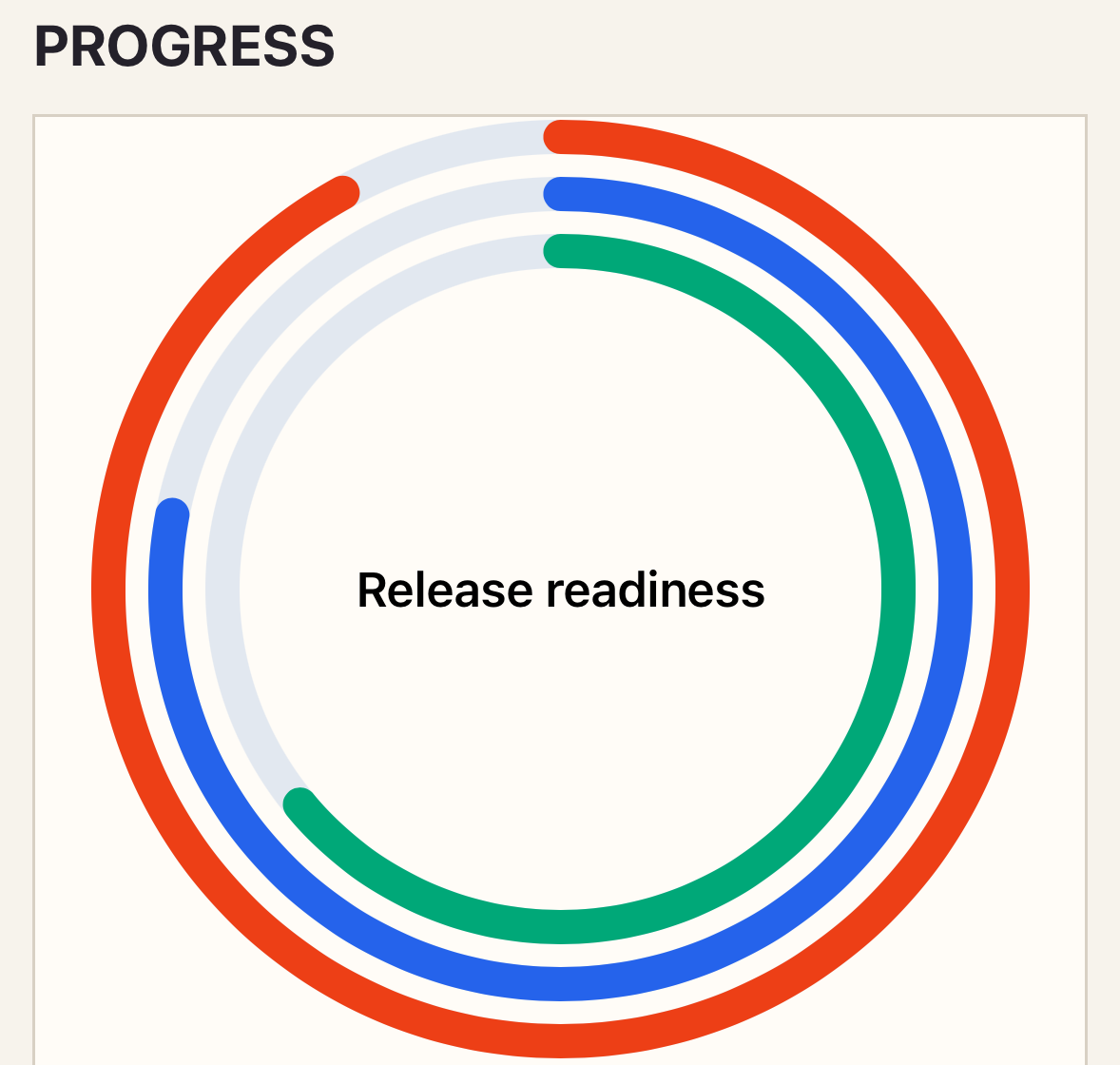

Progress chart rendered by NativePHP Charts on Android — Android

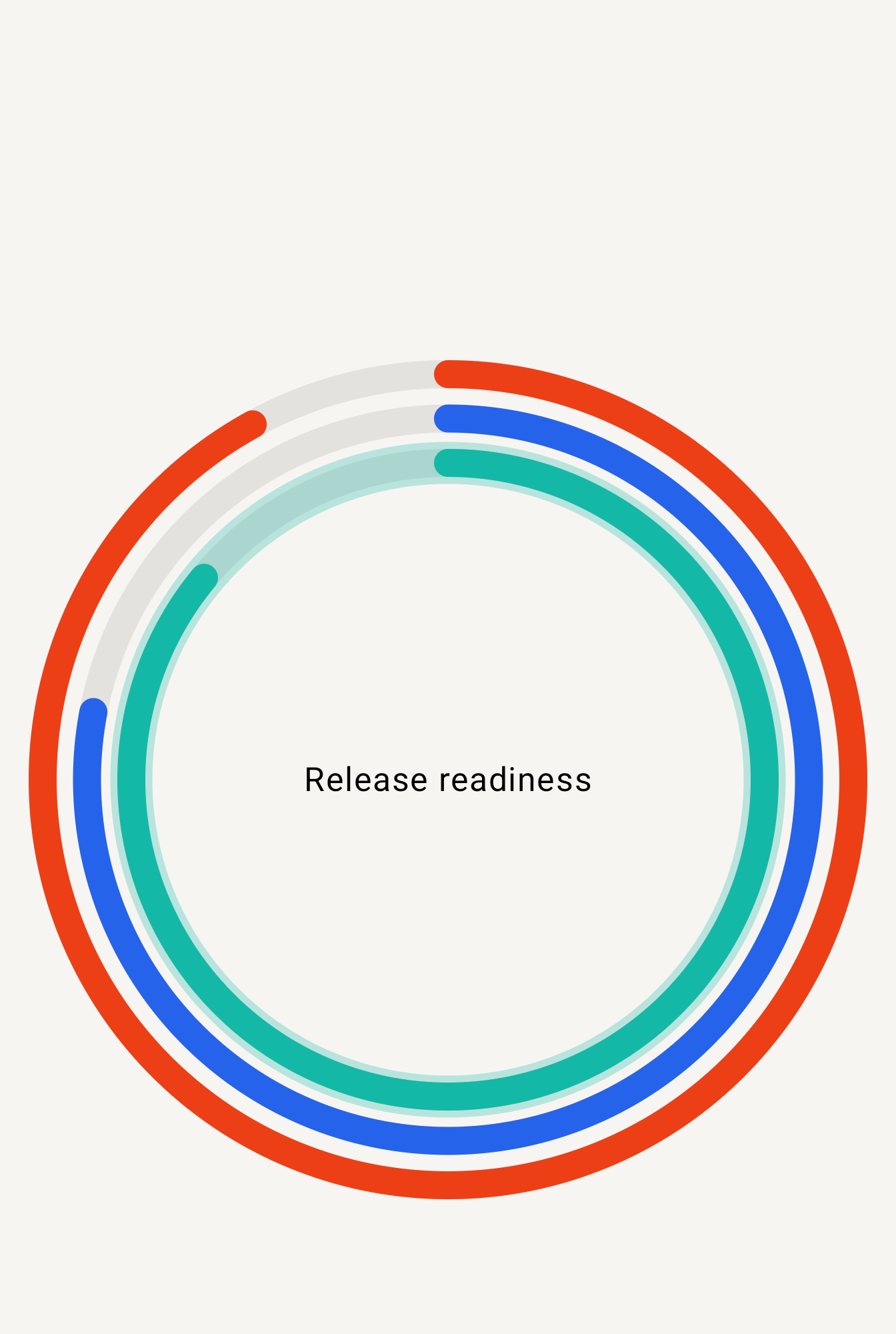

Progress chart with a selected ring on Android — Android · Ring selection

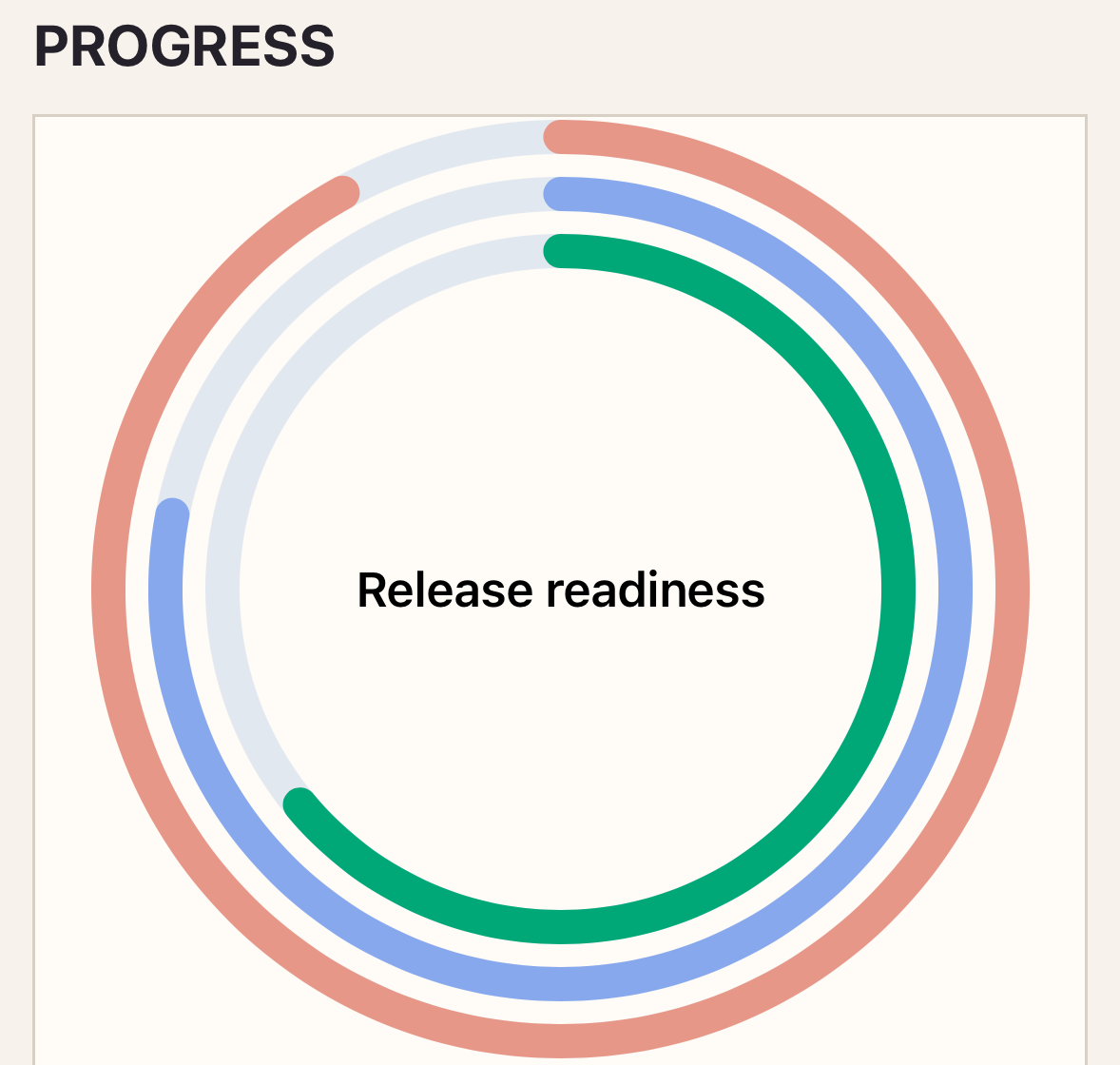

Progress chart after selecting a ring on iOS — iOS · Ring selection

Variants

Use one ring for a single goal or concentric rings for a short ordered set of related metrics.

Customization

Configure semantic track color, ring thickness, spacing, and line termination through style. Theme and preset values apply before metric-level color overrides.

See the style options reference for supported keys and ranges.

PHP recipe: delivery goals

This fluent example formats each ring as a Spanish percentage, shows a legend, and keeps the selected metric in the NativeComponent.

use Donmanueldev\NativephpCharts\Elements\ProgressChart;

public function deliveryProgress(): ProgressChart
{
    return ProgressChart::make()
        ->metrics([
            ['id' => 'orders', 'label' => 'Orders delivered', 'value' => 0.92],
            ['id' => 'returns', 'label' => 'Returns resolved', 'value' => 0.76],
        ])
        ->centerLabel('Today')
        ->locale('es-NI')
        ->valueFormat('percent')
        ->minimumFractionDigits(0)
        ->maximumFractionDigits(0)
        ->legend(['visible' => true])
        ->style(['ring' => ['width' => 10, 'gap' => 8, 'cap' => 'round']])
        ->onSelect('selectPoint')
        ->a11yLabel('Daily delivery goals');
}

value is normalized: use 0.92 for 92%, never 92.

Interaction

To handle selection, add _select="selectPoint" and define the method shown in Callbacks and interactions.

_select emits the stable metric ID, label, value, localized value, and original index.

Empty and error states

No metrics renders empty-label. Values outside 0...1, duplicate IDs, and malformed colors are rejected; native failures render error-label.

Accessibility

Metric labels must make sense without the ring. Keep center-label concise and include the chart purpose in a11y-label.

API

Required metrics contain id, label, value, and optional color. Specialized props are center-label and the ring style section.

Troubleshooting

If a percentage is rejected, pass its normalized value (0.92), not the displayed percentage (92).
